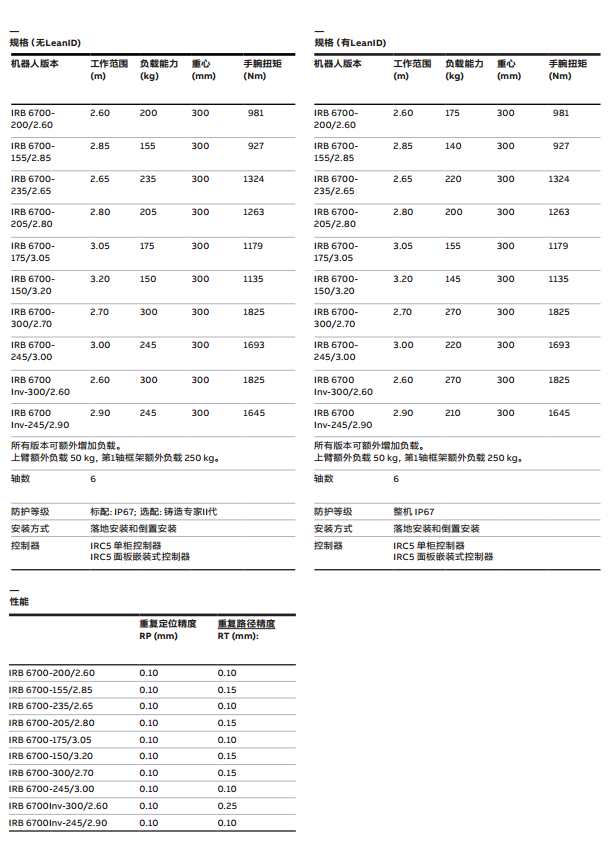

IRB 6700-150/3.20
軸數：6
荷重：150kg
工作范圍：3200mm
重復定位精度：0.1mm
防護等級標配：IP67
防護等級選配：鑄造專家II代
安裝方式：落地
DressPack選購件：LeanID
本體重量：1170 - 1280 kg
主要應用：裝配、切割/去毛刺、研磨/拋光、上下料、物料搬運、噴霧、點焊
能耗：2.85kw
IRB 6700-150/3.20
Number of axes: 6
Load: 150kg
Working range: 3200mm
Repeat positioning accuracy: 0.1mm
Protection grade standard: IP67
Protection level matching: Foundry Expert II
Installation method: landing
DressPack option: LeanID
Body weight: 1170-1280 kg
Main applications: assembly, cutting/deburring, grinding/polishing, loading and unloading, material handling, spraying, spot welding
Energy consumption: 2.85kw

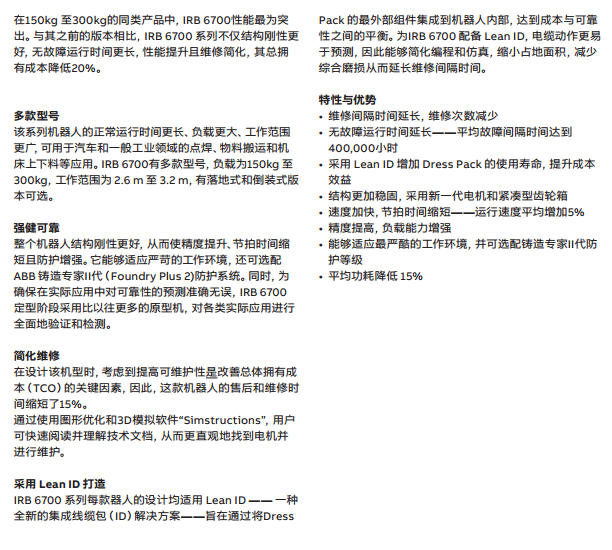

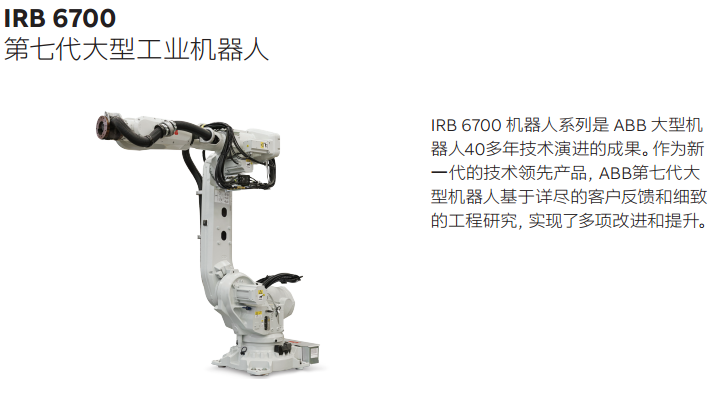

第七代大型機器人作為新一代的技術領先產品具備多項改進和提升。這些改進主要得益于對客戶需求的細致分析和廣泛的工程研究。IRB 6700與其替代的之前版本相比，更為穩健且維修簡化，是150-300kg負載等級中性能最好且總體擁有成本（TOC）最低的機器人。
As a new generation of technologically advanced products, the seventh-generation large-scale robot has many improvements and enhancements. These improvements are mainly due to detailed analysis of customer needs and extensive engineering research. Compared with the previous version it replaces, IRB 6700 is more robust and simplified in maintenance. It is the robot with the best performance and the lowest total cost of ownership (TOC) in the 150-300kg load class.
